Rectangle Tungsten Plates for Agriculture

We will continue to devote ourselves to the research and development of Molybdenum Evaporation Boat, Tantalum Threaded Rod, Molybdenum Heating Elements and provide customers with innovative and reliable products. The company adheres to the business philosophy of 'cooperation is the first time, service is eternal'. We believe that as a result of our ongoing efforts, we can grow the company and establish our own brand. We are looking forward to cooperating with you sincerely to achieve a win-win situation.

The pure tungsten pate products produced by Xi 'an ECON Industrial Technology include tungsten plate, tungsten sheet, tungsten foil and its products. There are many choices in shape and size, and we can also provide customized requirements according to demand. Pure tungsten rolled products are made of powder metallurgy ingot pressed and sintered. We not only provide tungsten plate with purity ≥99.95%, but also can be forged into bulk blank material with tungsten ingot, and then rolled into tungsten plate, tungsten sheet, tungsten rod, tungsten boat, tungsten foil, tungsten parts and other related tungsten products. Due to its excellent properties, tungsten is widely used in ion implantation, sputtering, coating, medical CT, electronics, vacuum equipment and other fields.

Executive standard:ASTM B760

Purity: W>99.95% (99.999% can also be achieved if special demanded)

Density: >19.15g/cc

Surface: Hot-rolled surface, cold-rolled surface, polished surface，alkali wash

Flatness:<2%

High Precision Tungsten Plate

Specification: customization

Standard: GB/T3875 ASTM B760.

Size tolerance: ±0.02mm.

Squareness: 0.02mm.

Surface roughness: Ra 0.8.or customization

Tungsten Plate Applications：

1、Used for tungsten sputtering target

2、Used for heating element and heat shielding for high temperature furnace

3、Used for radiation shielding

4、Producing Ion implanter parts

Specifications：

surface	Thickness(mm)	Tolerance(mm)	Width(mm)	Tolerance(mm)	Length(mm)	Tolerance(mm)	Roughness(um)
Rolling	1.0-3.0	±0.05~±0.5	10-300	±0.2~±0.5	10~2000	±0.2~±0.5	/
Turning	3.0-40	±0.05~±0.1	10-300	±0.1~±0.5	10~500	±0.1~±0.5	Ra≦1.6
Ground	1.0-40	±0.05~±0.1	10-800	±0.05~±0.2	10~1000	±0.05~±0.2	Ra≦0.8
Cold rolling	0.1-1.0	±0.05~±0.1	10-300	±0.05~±0.2	10~300	±0.05~±0.2	Ra≦0.8

Surface Treatment of Tungsten Plate

1. Hot-rolled alkaline cleaning surface

2. Electrolytic polish surface

3. Cold-rolled surface

4. Machined surface

5. Polished

High Purity Tungsten Plate

1. High-temperature resistance

2. High hardness

3. High density

Type	Purity (wt%)	Density (g/cm3)	Grain Size (μm)	Dimension (max.mm)	Ra (μm)
W5N	99.999	≥19.15	＜100	Ф450 x 10	≤1.6

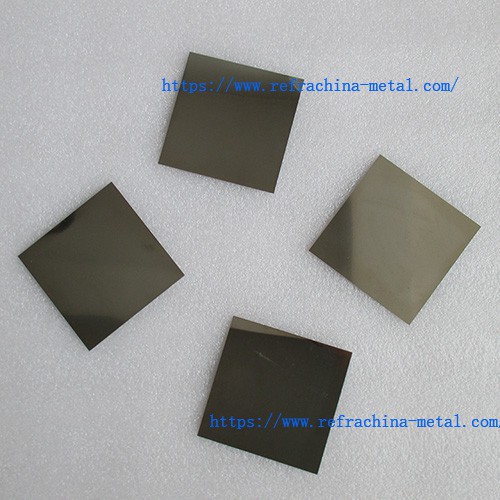

Product show:

Tungsten Plate Package

Tungsten plates are fragile and heavy; carefully handling is required. The standard package for tungsten plate product is a wooden crate so that the tungsten plate can be protected during handling and transportation.
